VGA TO CGA/CVBS/S-Video Converter

About Product

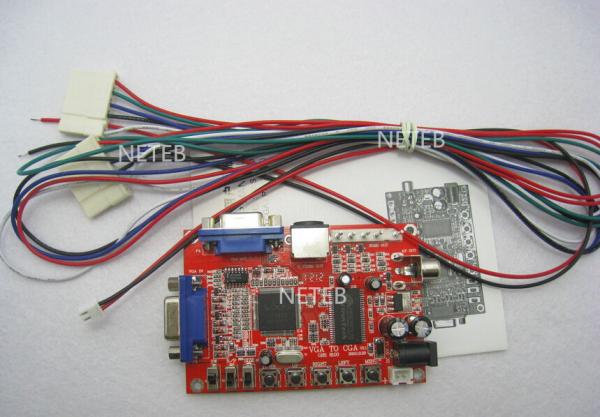

The VGA TO CGA/CVBS/S-Video Converter PCB board is designed for application in Industry and Gaming. Used for the easy upgrade of High resolution Arcade games or PC games to New old CGA monitors. It accepts and converts input signal timings of VGA/SVGA/XGA/SXGA(640*480,800*600,1024*768,1280*1024) and VGA for output at resolutions of slectable VCGA/CVBS/S-VIDEO.

You can easily output the image of VBA games like CS, KOF series,Metal Slug series etc

Examples of the arcade video converter board use are:
I have a 15khz EGA monitor and need to install a Street Fighter 4 PCB inside. Using the video converter board, the 31khz signal will be converted into 15khz for sharp display on the screen

Product Details

Features:
Supports VGA/SVGA/XGA/SXGA(640*480,800*600,1024*768,1280*1024) signal input.
Supports VGA output by pass.
CGA signal output(15K).
Video/S-Video output.
Supports NTSC & PAL.
Supports position control & zoom control.
True digital 24-bit A/D converter for true 16.7-million color conversion.
English OSD Adjust menu.

Specifications:
Input VGA signal:640*480@60/72/75/80/85 Hz
Input VGA signal:800*600@60/72/75/80/85 Hz
Input VGA signal:1024*768@60/72/75/80 Hz
Input VGA signal:1280*1024@60/72/75 Hz
Output CGA Signal:480i @60Hz
Output VGA Signal:By pass
Output Video Signal:480P NTSC/PAL
Output S-Video Signal:480P NTSC/PAL

User Control:
Output Switch, Image Zoom, Image Position,Output adjust.
Dimensions: 100*70*20mm
Weight: 100gms

Other Details

Packing:
VGA TO CGA/CVBS/S-Video Converter
5 Pin RGB Cable
Power cable - 2 pin connector

VGA TO CGA/CVBS/S-Video Converter
